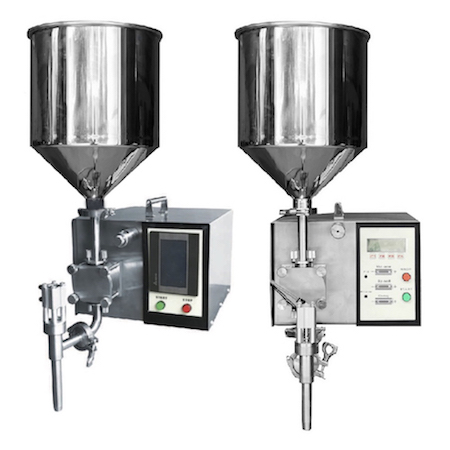

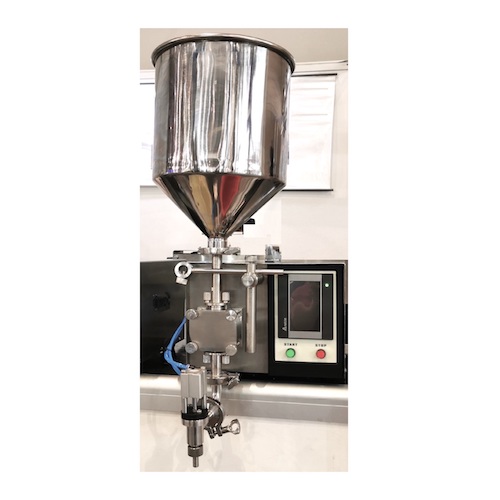

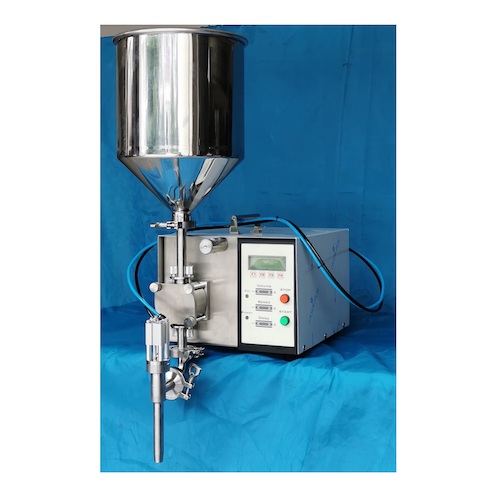

TotalPacks semi-automatic gear pump fillers are suitable to fill low viscous to the viscous product like lubricating oil, shampoo, lot conditioner etc.
Suitable for pharmaceutical, chemical, cosmetic, and food products.
Huge filling volume from 10ml to 10000ml.
For sales inquiries please contact us via email sales@totalpacks.com or click the button below
Features
The volume and speed of filling can be easily set from LED control panel or Touch Screen.
Suitable for both thin and thick product.
20 different filling data can be stored.
With a single filling nozzle.
With the shut-off pneumatic nozzle, no drips.
A foot pedal is included for ease of operation.
All parts in contact with the filling product are made of corrosion-resistant material(stainless steel 316L) to meet cGMP standard.
Compact and portable in design.
Filling volume: 10 - 2000ml.
Filling accuracy: 99%.
Compressed air: 0.4 - 0.6Mpa.
Running speed: 100ml is with 24 fills per minute.
300ml is with 16 fills per minute.
1000ml is with 10 fills per minute.
Voltage: 220V 1phase or 110V 1phase 50/60Hz.
Power: 400w.
Dimension: L310 * W480 * H700mm.
Weight: 22kg.
