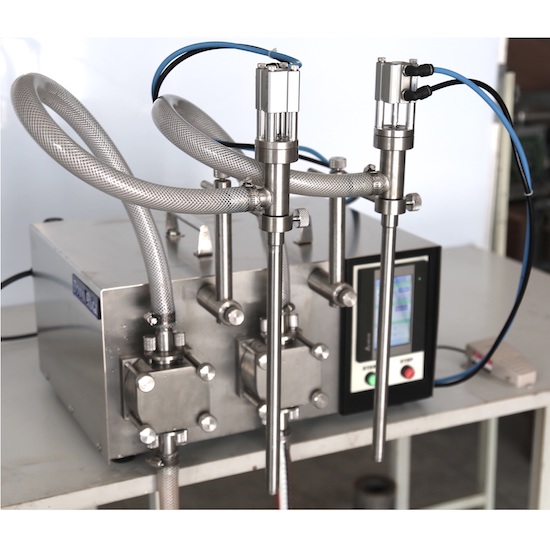

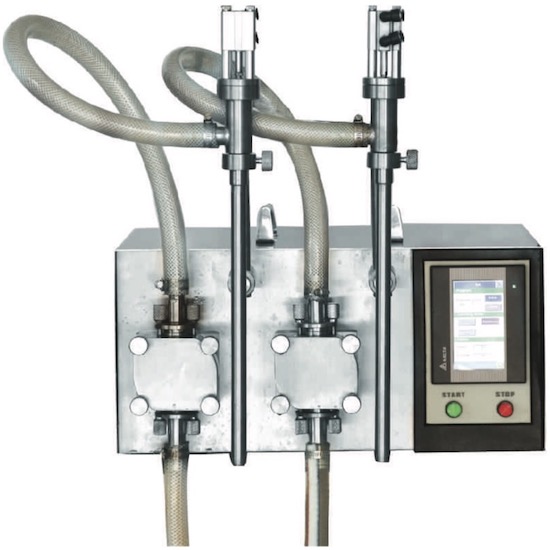

TotalPacks semi-automatic gear pump fillers are suitable to fill low viscous like water-thin liquid, lubricating oil and shampoo etc. Is suitable for pharmaceutical, chemical, cosmetic, and food products.
Huge filling volume from 10ml to 10000ml.
For sales inquiries please contact us via email sales@totalpacks.com or click the button below
Features
The volume and speed of filling can be easily set from Touch Screen.
20 different filling data can be stored.
With double filling nozzles. The two filling nozzles can fill at the same time and the same volume or can fill separately.
With the shut-off pneumatic nozzles, no drips.
A foot pedal is included for ease of operation.
All parts in contact with the filling product are made of corrosion-resistant material(stainless steel 316L) to meet cGMP standard.
Compact and portable in design.
Single filling nozzle is optional, please click here GPF-150S .
Filling volume: 10 - 10000ml.
Filling accuracy: 99%.
Compressed air: 0.4 - 0.6Mpa.
Running speed: 100ml is with 48 fills per minute.
300ml is with 32 fills per minute.
1000ml is with 20 fills per minute.
Voltage: 220V 1phase or 110V 1phase 50/60Hz.
Power: 800W.
Dimension: L460 * W480 * H310mm.
Weight: 36kg.
