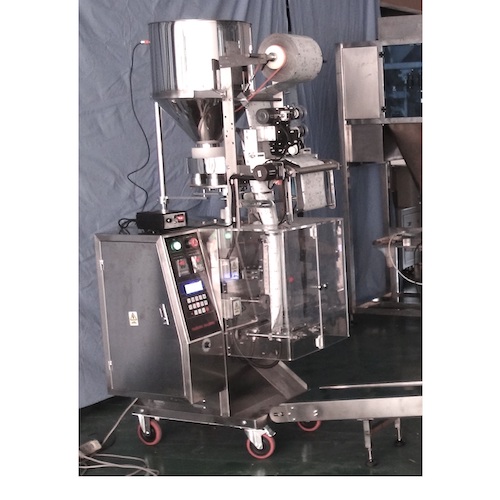

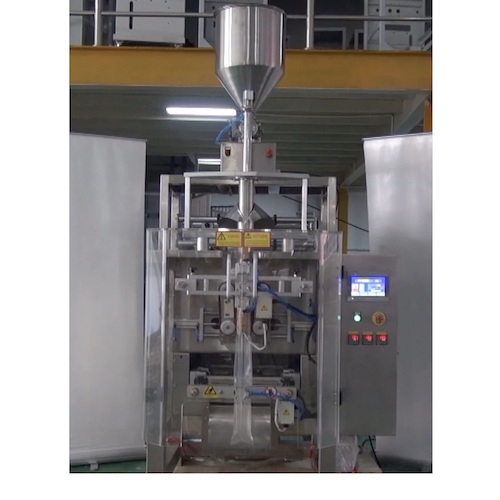

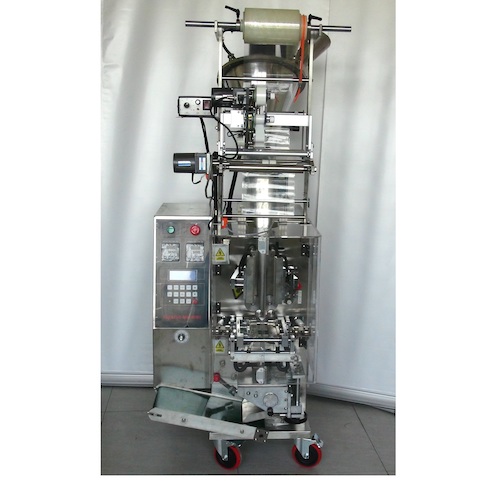

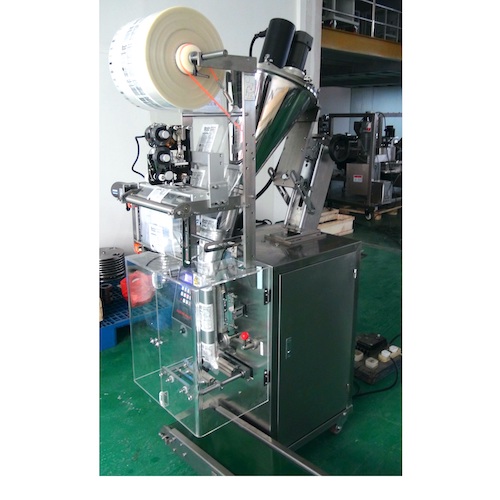

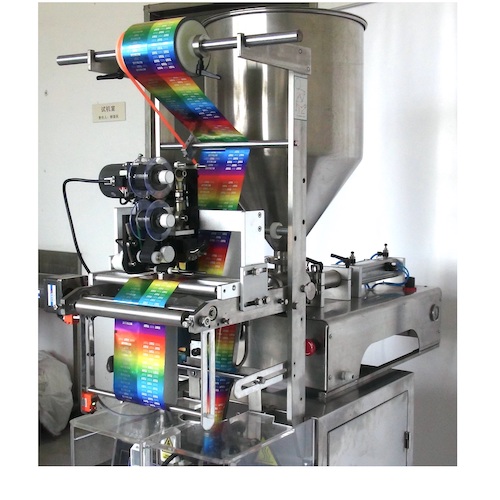

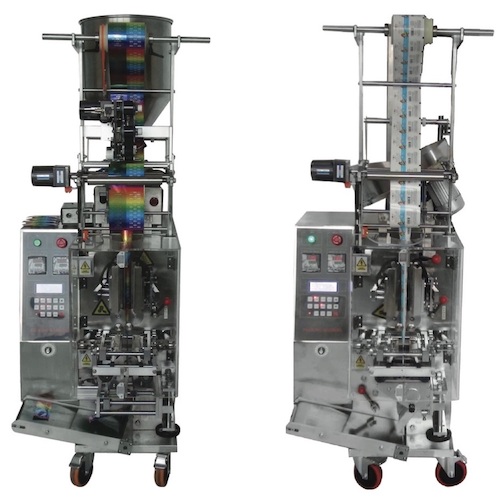

TotalPacks vertical sachet/pouch forming filling sealing machines form sachets from a sheet of laminated plastic (roll stock) with filling liquid, cream, powder, granules or tablets. Using a highly developed control system offers a first-class user-friendly system and allows all settings to be adjusted easily.
These sachet machinery and equipment is a type of automatic packaging unit that is commonly used in the pharmaceutical, chemical, cosmetic, and food products packaging industry.
For sales inquiries please contact us via email sales@totalpacks.com or click the button below
Features
Automatic complete the sachet forming, measuring, filling, sealing and cutting from roll films.
With flexible filling devices for various products, such as liquid, cream, powder, granules and tablets.
Sealing temperature is independently controlled, is suitable for various packaging materials.
A stamper included for stamping batch numbers and expiry dates onto each sachet.
The production of 3 or 4 side-seal packs is available.
Stainless steel systems.
Custom design is available.
Measurement: Piston pump(Liquid and Paste)

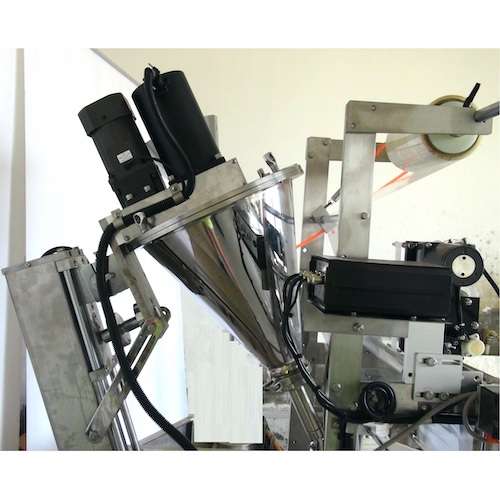

Auger(powders)
Cup doser(granules)
Piece-counting plater(tablets)
Sealing type: Hot sealing.
Cutting type: Straight cutter with a tear notch.
Filling accuracy: 99%.
Compressed air: 0.4 - 0.6Mpa.
Running speed: 20 - 60 sachets per minute.
Voltage: 220V 1phase or 110V 1phase 50/60Hz.
Power: 2150W.
Dimension: L930 * W750 * H1780mm.
(for reference)
Weight: 250kg.
