Features

Used for sealing, cutting and bag making of various types of PE, PVC, POF contraction films.

With the characteristics of safety, reliability, easy operation, fast heat sealing speed, beautiful and firm sealing, and can operate continuously for a long time.

It can be used directly connecting with the Heat Shrinking Tunnel.

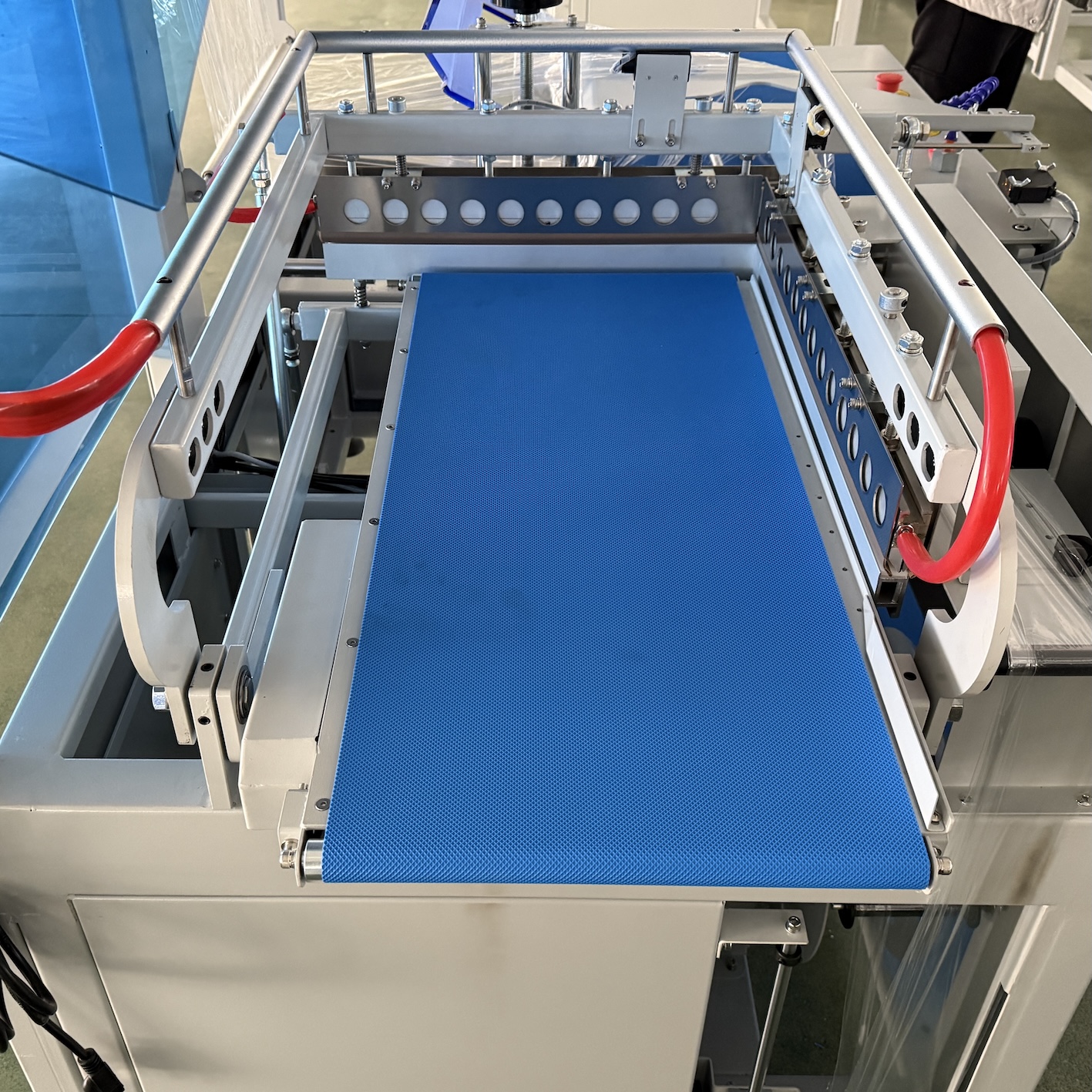

• Power belted discharge conveyor.

• Dual magnet clamping.

• Pin per feration hold punch.

• Variable dwell seal time.

• Variable conveyor time.

• Seal head return cylinder..

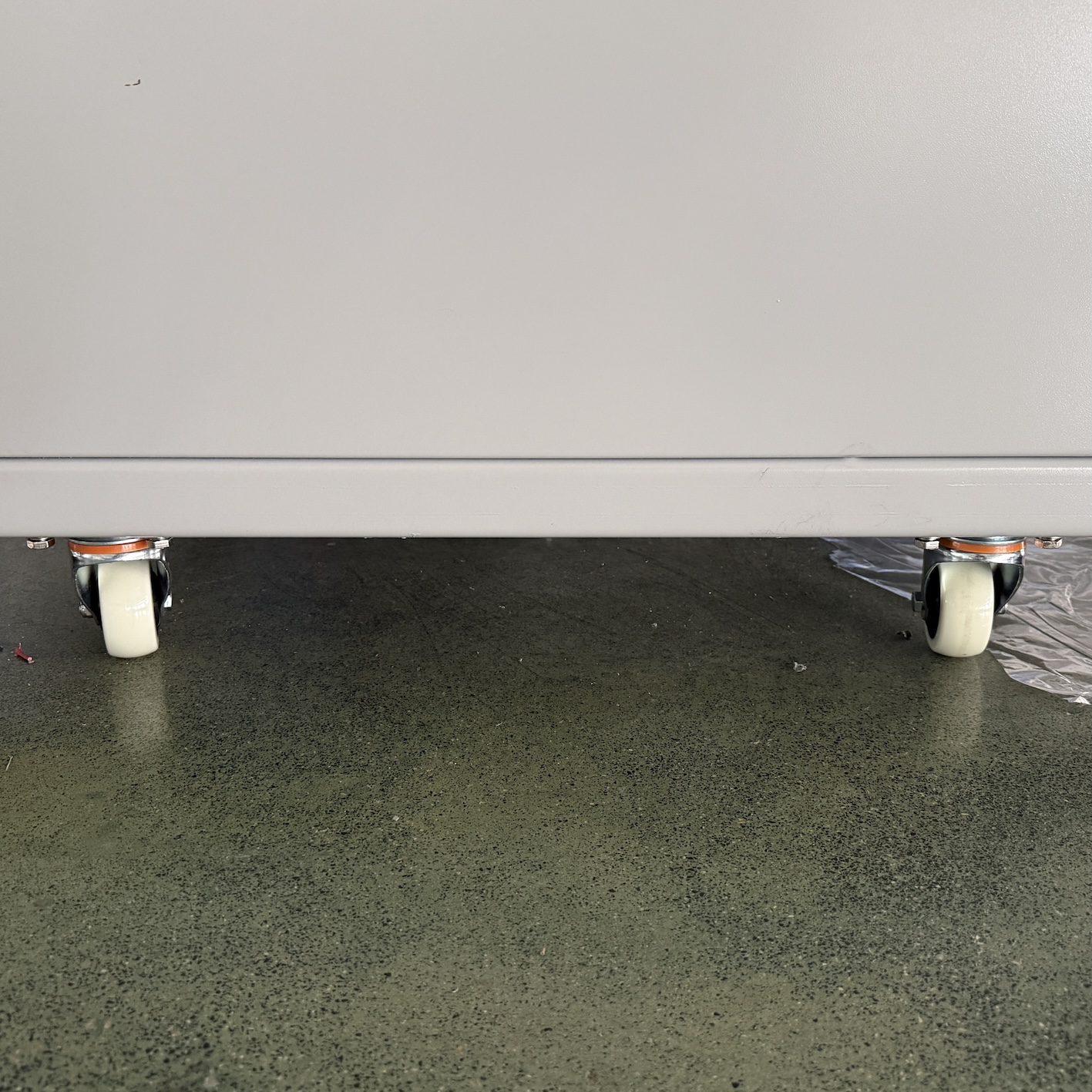

• Locking caster.

• Heating line over heat compensator protection

Packing product size:    Max. L520 x W410mm.

Seal size:                       Max. L560 x W450mm

Conveyor load:              Max. 20kg.

Running speed:            10 - 20 packs per minute.

Compressed air:            0.4 - 0.6Mpa.

Voltage:                         AC110-240V 1 phase 50/60Hz.

Power:                           KW.

Dimensions:                   L1600 x W835 x H1470mm.

Weight:                          280kg.
