Features

Suitable for low viscosity such as flowable liquids and shampoo.

The different filling volume range is optional, which is 2-10ml, 5-60ml, 10-125ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml and 500-5000ml.

All parts in contact with the filling material are made of 316L stainless steel to meet cGMP standard.

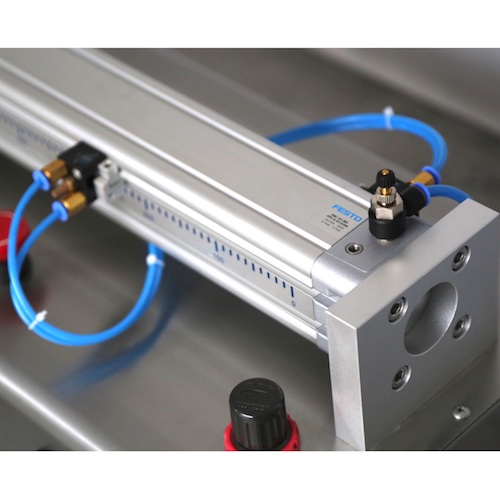

The machine adopts advanced pneumatic parts FESTO from Germany.

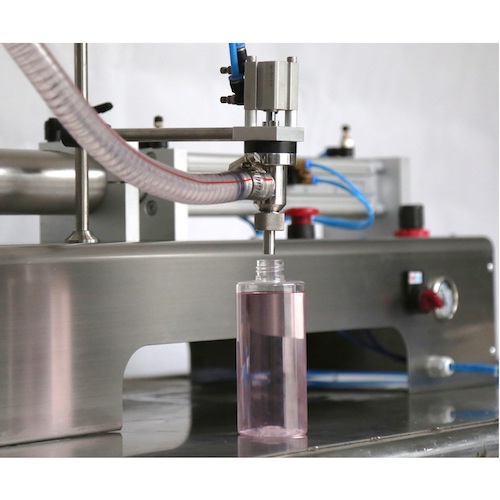

A shut-off nozzle ensures a smooth operation, as well as the easily-changeable bottom-nozzle tips Easy to operate and clean.

Food Pedal is included for ease of operation.

The machine operates without electricity, only compressed air.

For both low and high viscosity product, another bench-top piston filler with a hopper is optional, please click here FLC-150S / 250S .

For the automatic piston fillers with transferring conveyor, please click here

FLL series Automatic Liquid Piston Filler

or

FLL series Automatic Servo-motor Piston Filler.

Filling volume:       1-10ml, 5-60ml, 10-125ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml and 500-5000ml.

Filling accuracy:      99%.

Compressed air:    0.4 - 0.6Mpa.

Dimensions:           FLL-150S Single nozzle: From L710*W305*H425mm to L1285*W325*H550mm.

                               FLL-250S Two nozzles:   From L750*W345*H425mm to L1250*W595*H550mm.

Weight:                   25kg to 90kg.
