Features

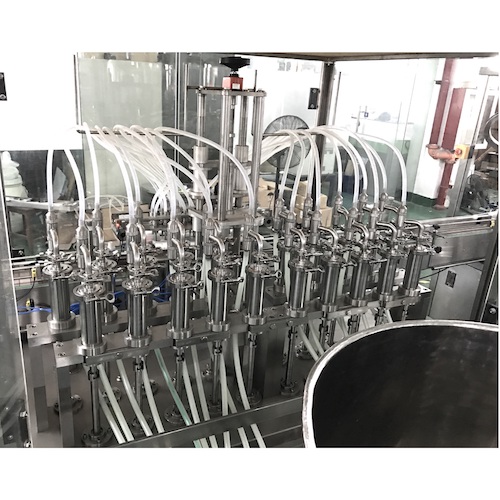

All volumetric pistons are actuated by a big servo motor. Set the filling volume on the Touch screen and with an automatic filling volume calibration function.

Equipped with a Siemens PLC and a Siemens Touch screen control system.

German Festo pneumatic parts, and ABB or Panasonic motors.

Variable speed drive ensures the machine smooth operation and makes it easy to adjust from one bottle size to another.

With 8, 10, 12, 14 or 20 filling nozzles.

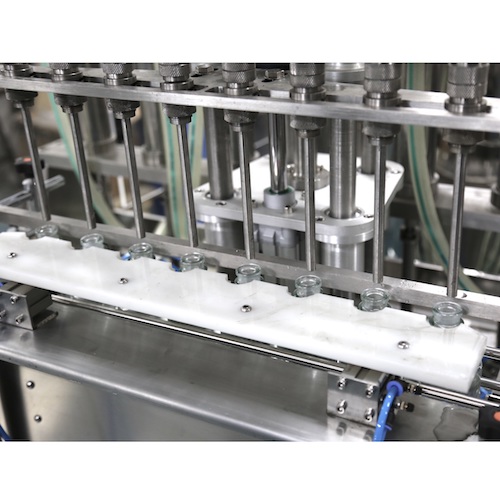

Diving nozzles are available to prevent bubbles formed during the filling process.

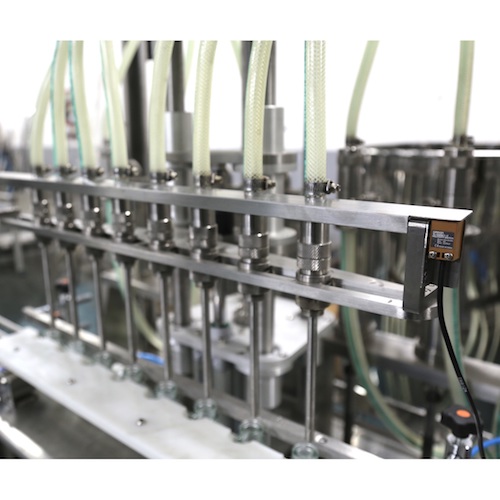

No bottle no filling mechanism.

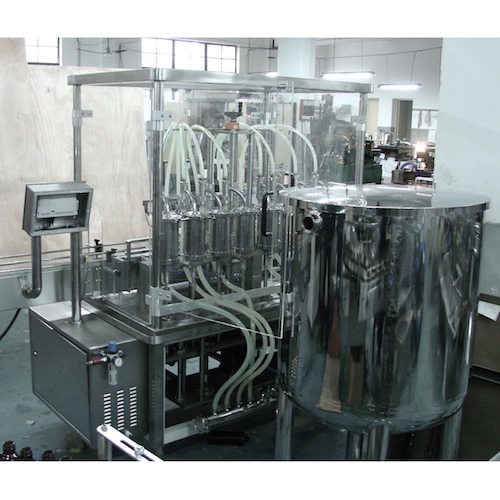

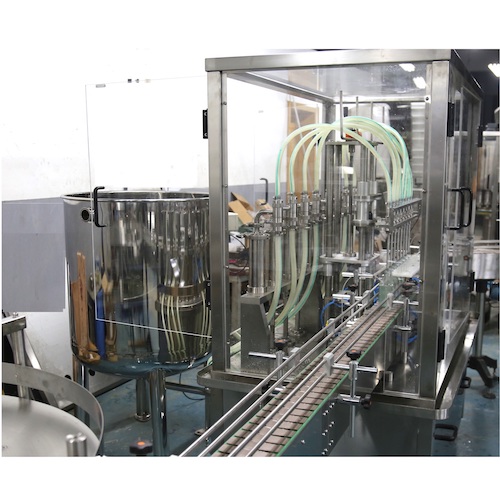

A big tank is at the back of filler with level sensor control.

All parts in contact with the filling material are made of stainless steel 316L to meet cGMP standard.

For the semi-automatic bench-top piston fillers, please click here FLL-150S / 250S Bench-top Piston Filler.

For the bench-top gear pump fillers, please click here GPF-150S Bench-top Gear Pump Filler.

For automatic linear gear pump fillers, please click here GPF Series Automatic Gear Pump Filler.

For automatic piston fillers for a thick filling product, please click here FLC series Automatic Cream Piston Filler.

Filling nozzle:      8, 10, 12, 14, or 20 nozzles.

Filling volume:     80 - 300ml, 300 - 1000ml.

Filling accuracy:  99%

Bottle diameter:   40 - 150mm.

Bottle height:       80 - 250mm.

Compressed air:  0.4 - 0.6Mpa.

Running speed:   up to 120 bottles per minute.

Voltage:               AC208 - 415V 3phase 50/60Hz.

Dimensions:         L2400*W1550*H1800mm.

Weight:                 750kg to 1500kg.
