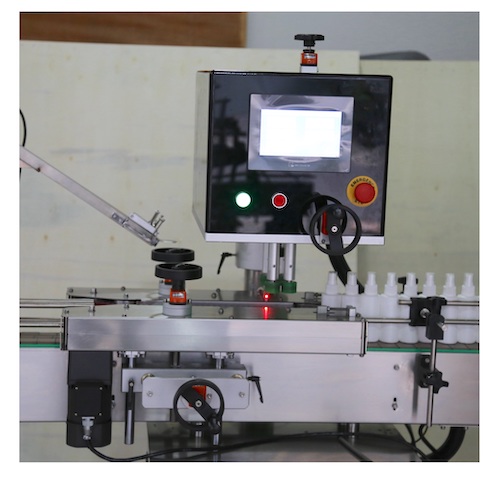

TotalPacks automatic 4 wheel capper is suitable for trigger caps, duckbill caps, pumps, spray caps and screw-on caps. The automatic capping machine can work individually or integrated into production lines with fillers, labelers using manual or automatic cap placers.
For sales inquiries please contact us via email sales@totalpacks.com or click the button below
Features
It is suitable for even every type of threaded caps. Normal round caps, spray caps, trigger caps and pump caps.
The reliability, ease of operation and change-over procedure and flexibility of installation are the most important advantages of the capping machine.
A few parts need to be changed and simply for replacing when it's is for different sizes of caps and bottles.
60 pre-saved programs to recall for different sizes of bottles and cap change-overs.
Digital torque adjustment
Simple operation
Custom design is available.
Cap diameter: 20 - 80mm.
Bottle diameter: 90mm Max.
Bottle height: 300mm Max.
Running speed: Up to 70 bottles per minute.
Can design to be Max. 110 bottlers per minute.
Torque: 0 - 2.4Nm or 0 - 4.5Nm.
Compressed air: 0.4 - 0.6Mpa.
Voltage: AC110-240V 1phase 50/60Hz.
Power: 2200W.
Dimensions: L2400*W700*H1400mm.
Weight: 160kg.
