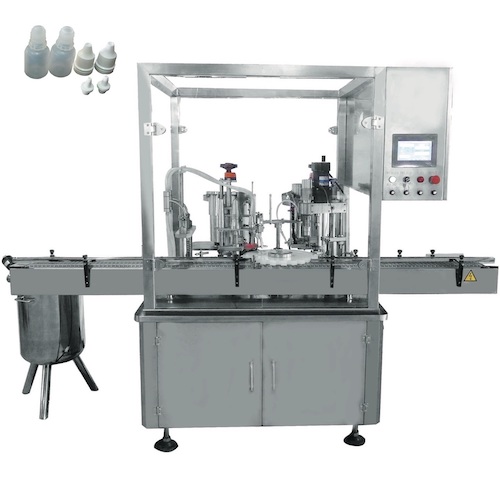

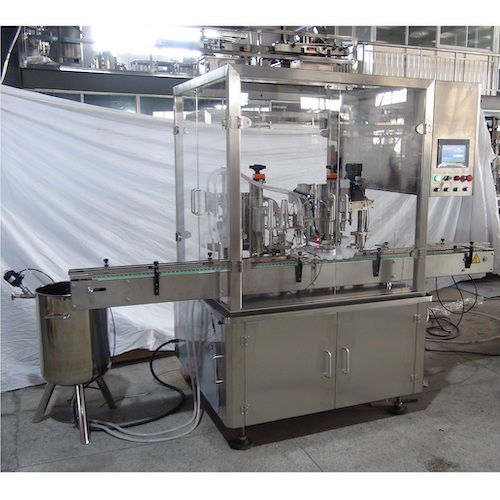

TotalPacks automatic monoblock filling plugging capping machine is suitable for filling vials, eyedrop and so on.
It is suitable for applications in pharmaceuticals, biotech, and Biopharmaceutical industry. Multiple filling nozzles as 2 and 4.
For sales inquiries please contact us via email sales@totalpacks.com or click the button below
Features
Mitsubishi PLC control system accessed through an easy-to-use touch screen.

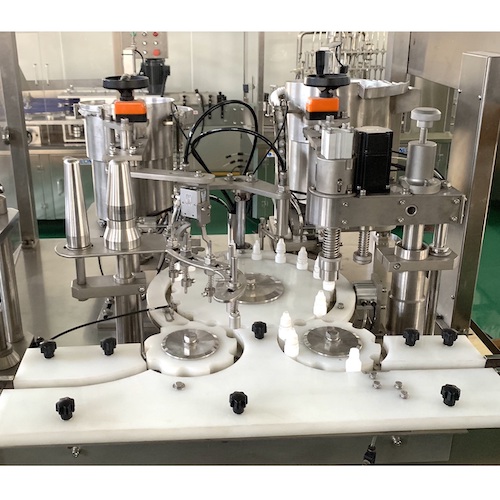

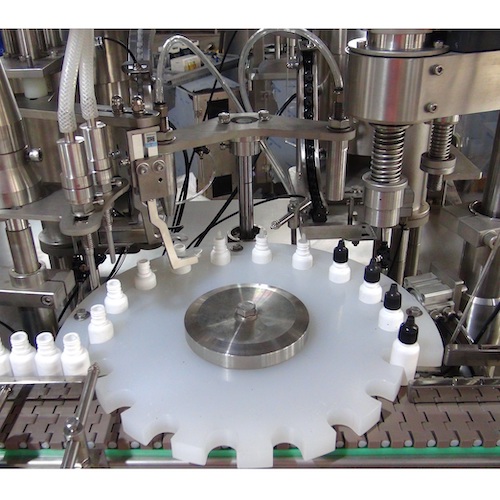

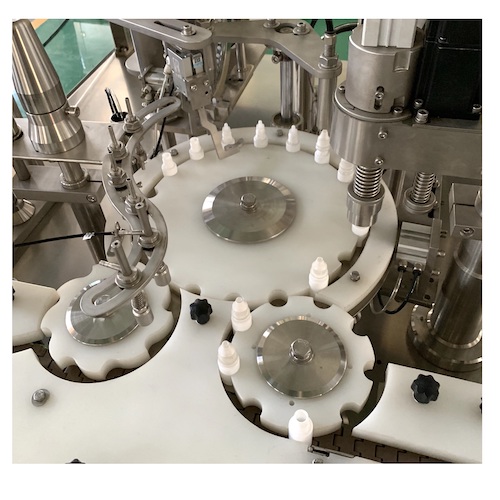

Automatic fill liquid, insert the tips and tighten the caps.
No-bottle-no-filling and no-plug-no-cap mechanisms included.
A variable speed drive ensures a smooth operation.
An optional diving nozzle and a bottom-up nozzle is available.
The machine is easily adjusted from one bottle size to another.
99% filling precision.
All parts in contact with the filling material are made of stainless steel 316L to meet cGMP standard.
Custom design is available.
Filling Volume: 2 - 25 ml, 20 - 60 ml, 50 - 125 ml.
Capacity: 30 - 70 bottles/min
Filling nozzles: 1 or 2 or 4 nozzles.
Plugging nozzles: 1 nozzle.
Capping nozzles: 1 nozzle.
Voltage: 220V 1phase or 110V 1phase 50/60Hz.
Power: 2KW.
Dimensions: L2400 * W960 * H2100mm.
Weight: 500kg.
