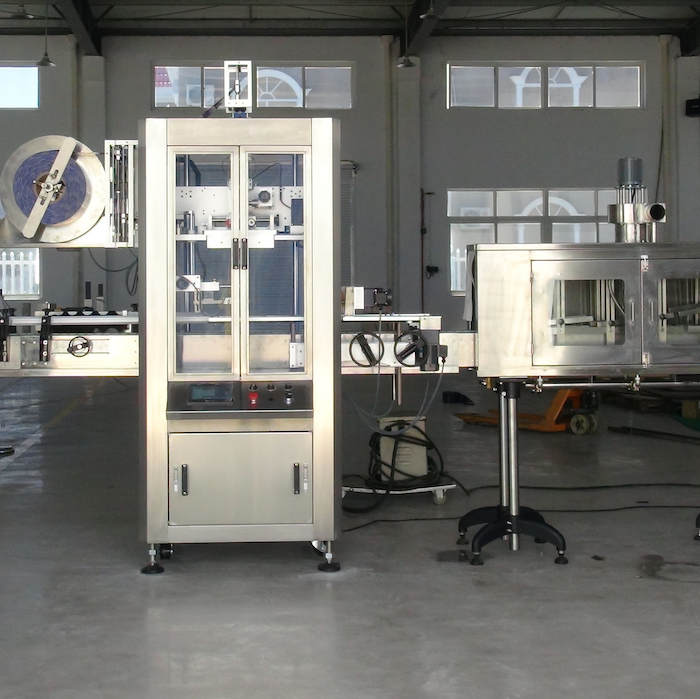

TotalPacks shrink sleeve applicator is used to apply shrink sleeve label on the container. It is suitable for full body sleeve,full-body sleeve over the cap, multipack, tamper-evident band, and label panel applications.
Features

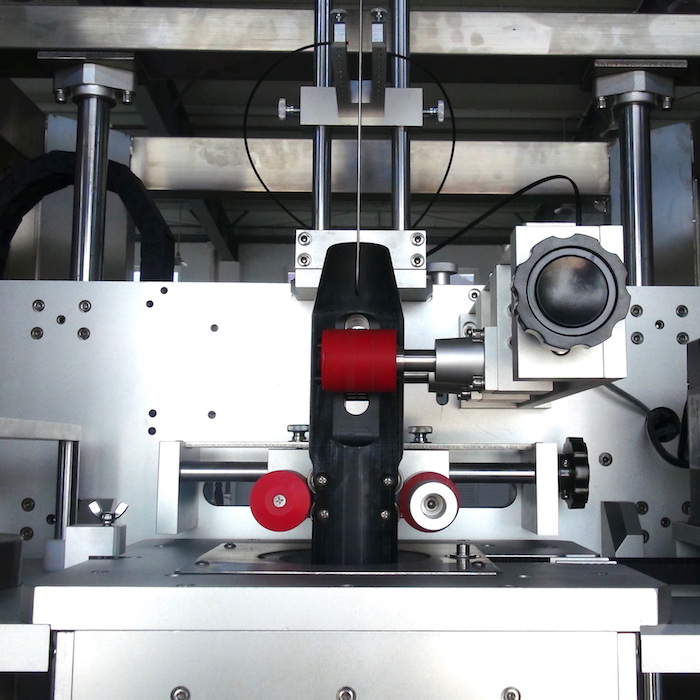

It features a stainless-steel frame for long service life and the latest in servo control for fast, accurate, and trouble-free film feeding and cutting.
The main body is made of SUS304 stainless steel in accordance with cGMP standard.
A colour touchscreen human-machine interface(HMD)makes operation easy and intuitive.
Simple to maintain, which reduces staff training time and cost.
Integrated shrinking tunnel and conveyors areIncluded.
Electric or Steam heating type is optional.
Custom design is available.
Bottle diameter: 25-55mm, 55-95m, 95-110mm.
Bottle height: 15-320mm.
Sleeve material: PET, PVC, OPS.
Sleeve height: 38 - 150mm.
Sleeve thickness: 0.035 mm - 0.05mm.
Inner Dia. of core of sleeve: 3 inches to 5 inches.
Running speed: 12,000 - 18,000 bottles per hour.
Voltage: AC208 - 415V 3phase 50/60Hz.
Power: 2.5 kw.
Dimensions: L5000 * W950 * H2000 mm.
Weight: 800 kg.
