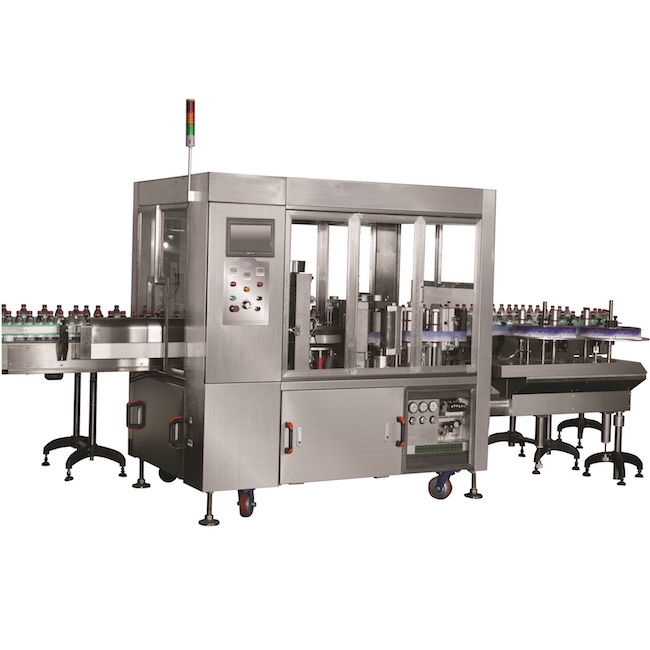

TotalPacks hot melt labelling machine meets round bottle labelling requirements, applicable to the labelling for the empty bottles or filled bottle.
The stable production speed of up to 24,000 bottles per hour. Easy to be connected into the production line with a huge 3-1 washing filling capping machine.
Features
Hot melt glue labeller is suitable for wrap-around labelling of water bottles, beverage bottles, soda bottle, tea bottles and kinds of cans. They are used on high-speed labelling applications where a "full wrap" label is required.
Optimal structural design to minimize the number of wearing parts, improve its service life.
Configuration of different bottle and label parts, easy to replace operation.
Through the label conveying mechanism and optimum design of the control system, adaptable to Labels.
Custom design is available.
Bottle diameter: 35 - 170 mm.
Label height: 40 - 300 mm.
Running speed: 3,600 - 24,000 bottles per hour.
Voltage: AC208 - 415V 3phase 50/60Hz.
Power: 8kw.
Dimensions: L4500 * W1600 * H2000 mm.
Weight: 3000 kg.
