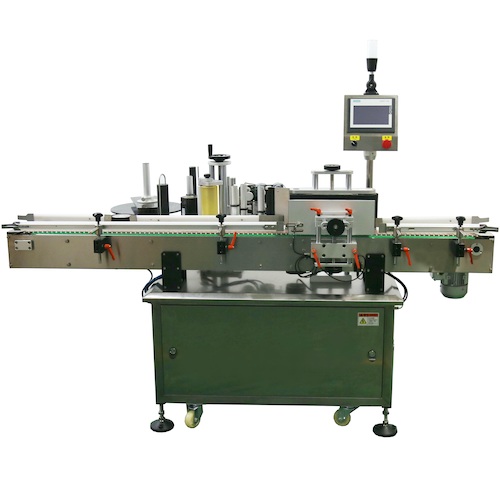

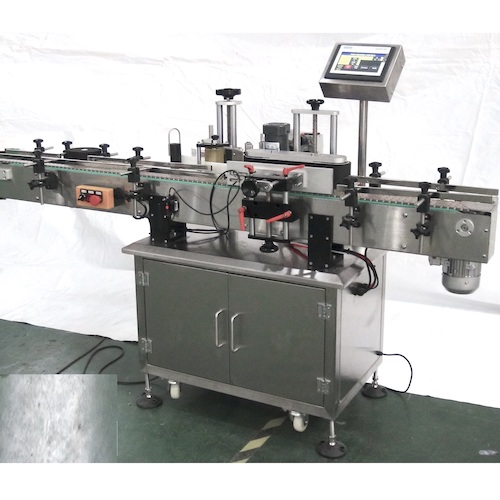

TotalPack offers a wide range of automatic labeling for any type of container of all container sizes and shapes for the pharmaceuticals, daily chemicals, food & beverage industries.
The automatic labelling machine can work individually or integrated into production lines with liquid filling machines, powder filling machines, counting filling machines.
For sales inquiries please contact us via email sales@totalpacks.com or click the button below
Features

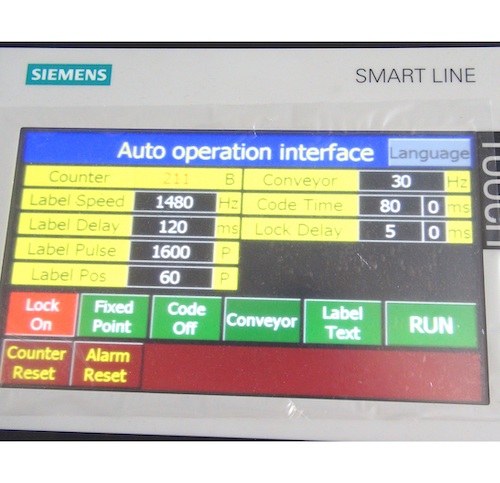

Easy-to-use control system with Siemens or Allen-Bradley PLC and Touch Screen.
The labelling machine detects the label and bottle automatically, with a variable speed conveyor for the different capacity requirements.
Sided wrap labelling for round bottles.
No changeable parts for different size of bottles and labels.
The transparent label is ok.
High running speed is up to 120 bottles per minute.

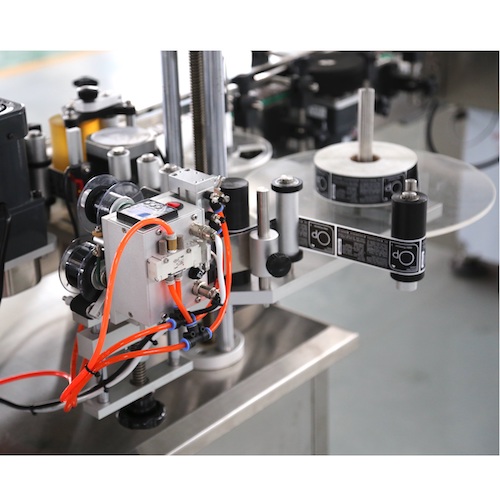

Equipped with a hot stamp printer in order to print the batch or expiry date.
Easily and simply adjust to accommodate the different sizes of bottles and label sizes.
Custom design is available.
Bottle Dia.: 20 - 100mm.
Bottle Height: 40 - 200mm.
Label height: 30 - 144mm.
Label length: 20 -280mm.
Label accuracy: +/-1mm.
Running speed: 40 - 120 bottles/min.
Voltage: 220V 1phase or 110V 1phase 50/60Hz.
Power: 1.5KW.
Dimensions: L2000 * W850 * H1350 mm.
Weight: 350 kg.
