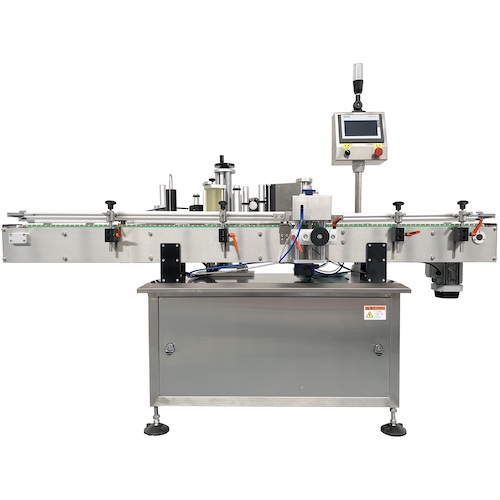

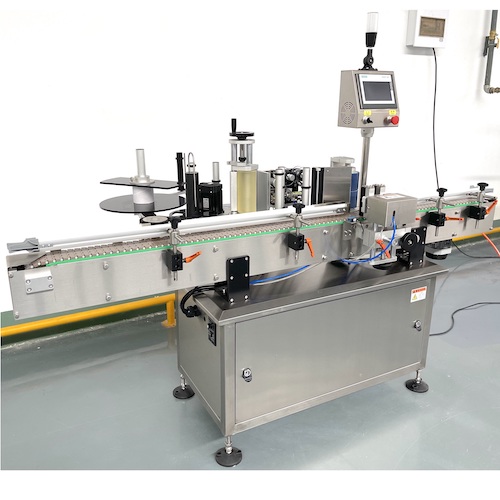

TotalPacks offers a wide range of automatic labeling for any type of container of all container sizes and shapes for the pharmaceuticals, daily chemicals, food & beverage industries.
The automatic labelling machine can work individually or integrated into production lines with liquid filling machines, powder filling machines, counting filling machines.
For sales inquiries please contact us via email sales@totalpacks.com or click the button below
Features

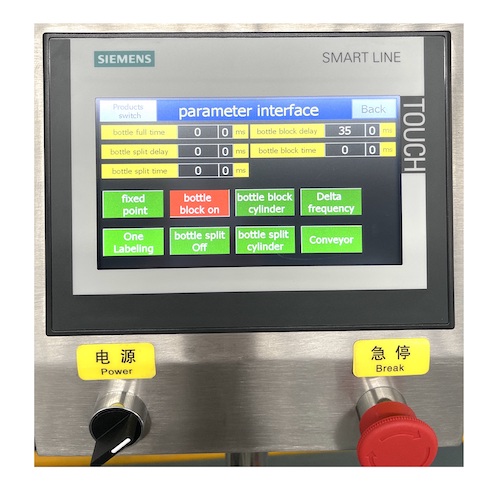

Easy-to-use control system with Siemens or Allen-Bradley PLC and Touch Screen.
The labelling machine detects the label and bottle automatically, with a variable speed conveyor for the different capacity requirements.
Sided wrap labelling for round bottles or double sided wrap labelling for round bottles.
A positioning sensor for the front and back position for two labels sticking on one bottle.
No changeable parts for different sizes of bottles and labels.
The transparent label is ok.
Equipped with a hot stamp printer in order to print the batch or expiry date.
Easily and simply adjust to accommodate the different sizes of bottles and label sizes.
Custom design is available.
Label height: 10 - 130mm.
Label length: 20 -300mm.
Label accuracy: +/-1mm.
Running speed: 40 - 120 bottles/min.
Compressed air: 0.4 - 0.6 Mpa.
Voltage: 220V 1phase or 110V 1phase 50/60Hz.
Power: 1.5KW.
Dimensions: L2000 * W1050 * H1600 mm.
Weight: 350 kg.
