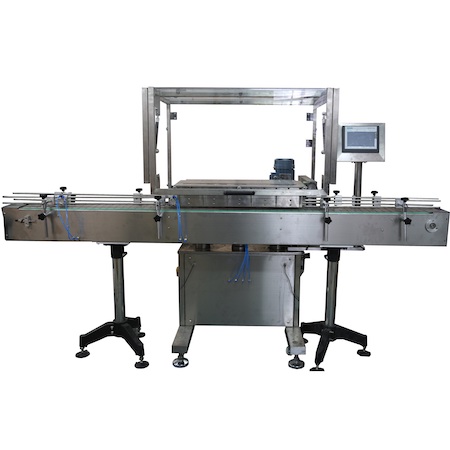

TotalPacks automatic bottle rinsing machines are suitable to wash the bottles with liquid or air. It is suitable for pharmaceutical, chemical, cosmetic, and food products.
For sales inquiries please contact us via email sales@totalpacks.com or click the button below
Features
Equipped with a Siemens PLC and Touch Screen control, Panasonic or ABB motors, and Banner sensors.

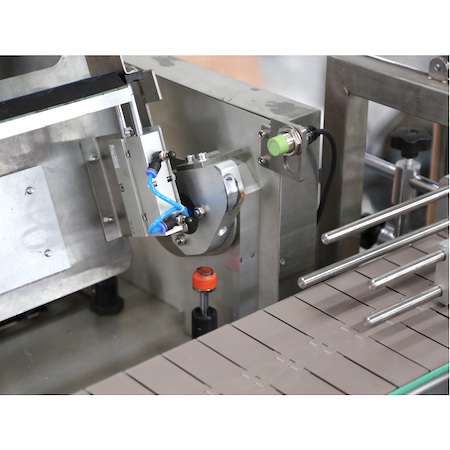

Hold the bottles from the conveyor and turned upside down, clean air or liquid is sprayed into the bottle for cleaning, and then come back to stand on the conveyor belt.
8, 10 or 12 blowing heads.
Easy-adjust for different sizes of bottles.
Stainless steel construction to meet cGMP standard.
Custom design is available.

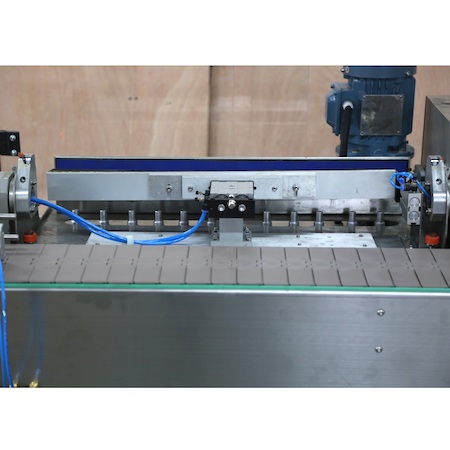

Blowing nozzles: 8, 10 or 12 nozzles.
Bottle dia./width: 40-90mm
Bottle height: 60-200mm
Running speed: 30 - 70 bottles per minute.
Compressed air: 0.4 - 0.6Mpa.
Air consumption: 800-1000L / min
Voltage: AC208-415V 3phase 50/60Hz.
Power: 800W.
Dimensions: L1100*W700*H1600mm.
