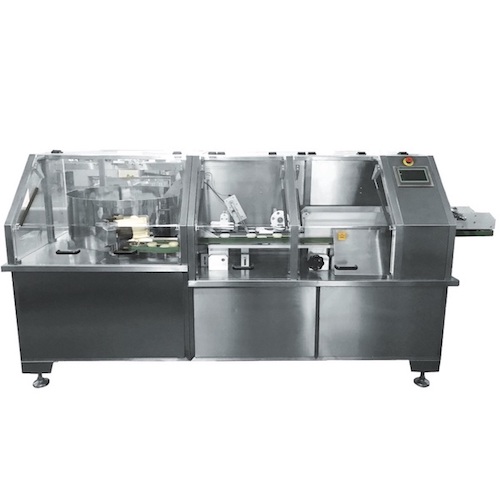

TotalPacks high-speed automatic bottle unscrambler is designed with stainless steel and works for different size of bottles.
For sales inquiries please contact us via email sales@totalpacks.com or click the button below
Features
Equipped with a Siemens PLC and Touch Screen control,
Panasonic or Abb motors. Banner sensors and FESTO pneumatic parts
The changeover to accommodate bottles with different sizes is fast.

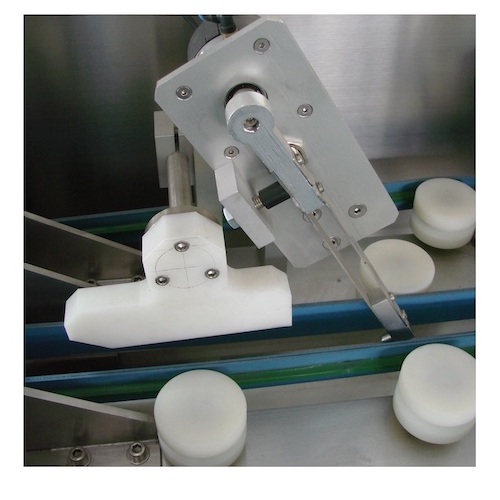

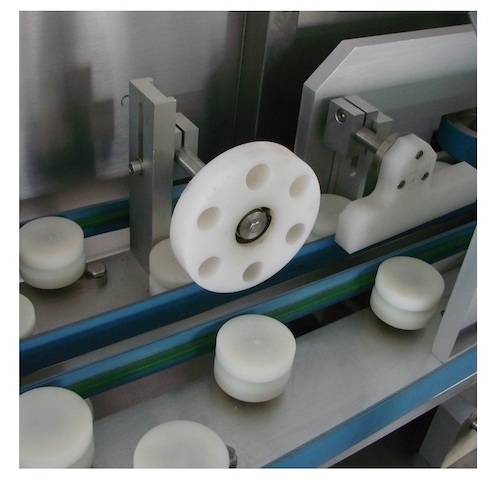

Bottle orientating assembly is accurate, adjustable and user friendly.
304 stainless steel construction to meet the cGMP standard.
Ionized air rinse is optional.
Custom design is available.
A more compact version for small space needs, please click here US-250A Bottle Unscrambler
Bottle shape: the Round, oval, square and rectangular.
Bottle diameter: 30mm - 85mm.
Bottle height: 250mm Max.
Bottle storage capacity: 600L.
Air pressure: 0.3Mpa - 0.4Mpa.
Running speed: 50 -120 bottles per minute.
Voltage: AC208-415V 3phase 50/60Hz.
Dimensions: L3000*W1500*H1400mm.
Weight: 2000kg.
