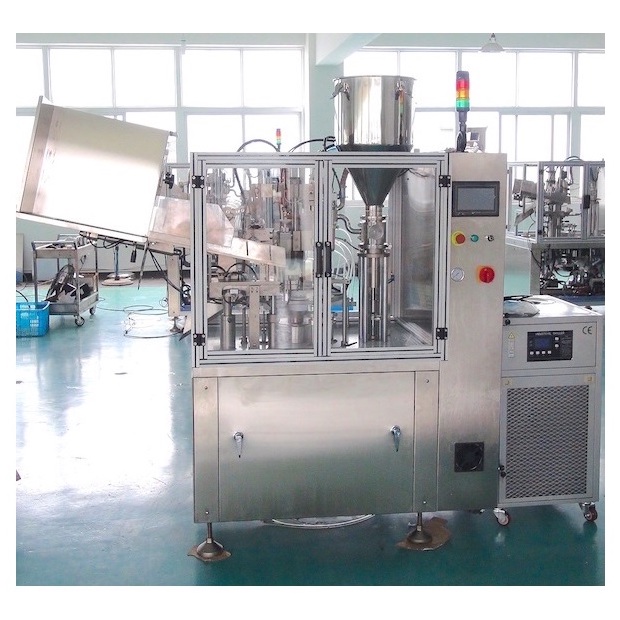

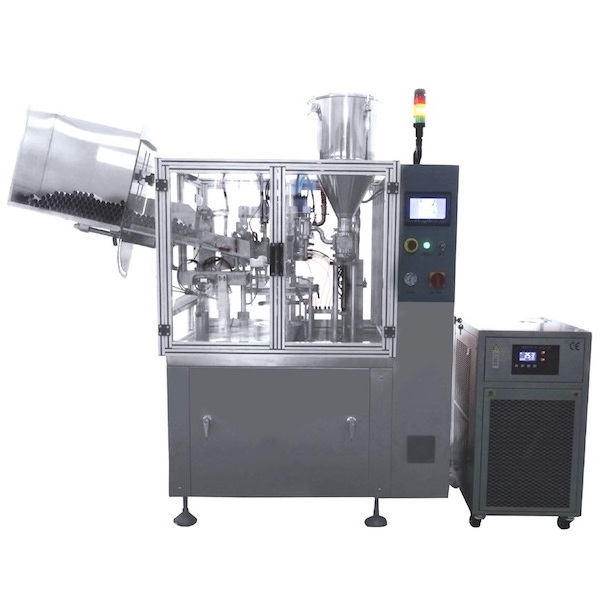

TotalPacks automatic tube filler sealer is suitable for filling all kinds of semi-viscous and viscous products into plastic and compound tubes. It's suitable for pharmaceutical, chemical, cosmetic, and food products.
Run for round tubes, as well as the oval tubes.
For sales inquiries please contact us via email sales@totalpacks.com or click the button below
Features
Hot air sealing, work with a chiller.
Works for plastic and compound tubes.
Run for both round and oval tubes, suitable for common sealing end or special space sealing end.
Material contact parts 316L stainless steel.
Air shut-off nozzle, no drippings after filling.
No tube no filling.
40L hopper is included.
Dynamically built to meet the cGMP standard.
Material Feeding Pump, Hopper Stirrer, Hopper Heater and Tube Filling Machine are optional.
Custom design is available.
For faster machines, please click here TFS-300A
Filling volume: 5 -250ml or 50 - 500ml.
Tube diameter: 10 - 50mm or 20 - 60mm.
Tube height: Max. 210mm or Max. 250mm.
Hopper volume: 40L.
Running speed: Up to 40 tubes per minute.
Compressed air: 0.4 - 0.6Mpa.
Voltage: AC208-415V 3phase 50/60Hz.
Dimensions: L1900*W1000*H1900mm.
Weight: 900kg.
